The C.Lorenz AG is one of the pioneers of telegraph and teleprinter equipment producers in Germany.
Already, in first days of teleprinting they started producing typeprinting telegraph systems. (e.g. for the Berlin Police department around 1900, see photo right)
The production of 5-bit-Baudot teleprinter equipment started in 1929 due to a contract with the Kleinschmidt-Morkrum company, Chicago (later Teletype Corp.). The C.Lorenz AG bought licences and patents and started producing teleprinters that worked in order to the start-stop system.
The company's first machines were licences of Teletype model 14 and model 15.
The Lo133, built in the 1960s, was the first completely self designed machine. Also in the 1960s they changed name from C.Lorenz AG to SEL (Standard Electric Lorenz AG). In the 1980s bought by ALCATEL.
advertisement from 1929
tape printer
speed 50 (45) bauds = 66 (60) wpm
type basket printing mechanism
licence of model 14 tape printer
wiring diagram
tape printer
speed 50 (45) bauds = 66 (60) wpm
type basket printing mechanism
improved post war T32Lo
used from the 40s to 60s
page printer
speed 50 (45) and 75 bauds
improved Teletype model 15 licence
available as KSR, ASR and RO version in different cases
page printer
speed 50 (45) bauds = 66 (60) wpm
type basket printing mechanism
Here in Germany the competitor of the Siemens T100
Lo133 Automatik with automatic letters-figures switching
capability and mechanical keyboard buffer
page printer
speed 50 - 100 bauds (switchable)
metal type wheel printing mechanism
first fully electronic teleprinter, available as ASR, KSR and ESR version
ESR=Electronic Send and Receive, 4 kbyte memory
microprozessor controlled machine from the peak of the TELEX era
page printer
speed 50 - 200 bauds (programable)
9 needle matrix printing mechanism
CRT screen an electronic memory

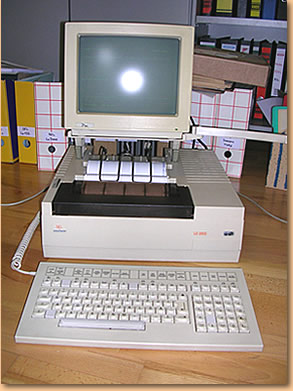

page printer
speed 50 - 200 bauds (programable)
9 needle matrix printing mechanism, printing line by line
CRT screen and electronic memory
3.5" floppy disk storage unit or paper tape attachments optional
Modernized version of Lo3000. Last ever produced teleprinter model by SEL.
These machines were build in a time where Telefax already replaced TELEX service.
Already marketed unter ALCATEL logo.
page printer
tape reader (distibutor)
speed 50 (45) bauds
licence of Teletype tape distibutor

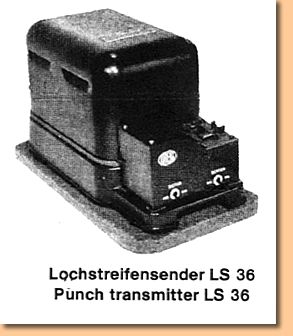

tape reader (distributor)

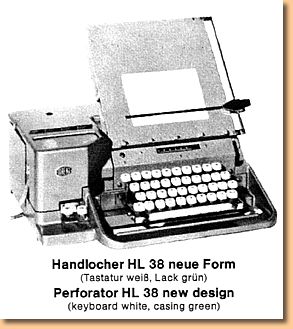

manual tape perforator
Line control and dial unit for connection to TW39 switching centrals
Local line current unit . Mainly used together with FGT 494 line control unit.
